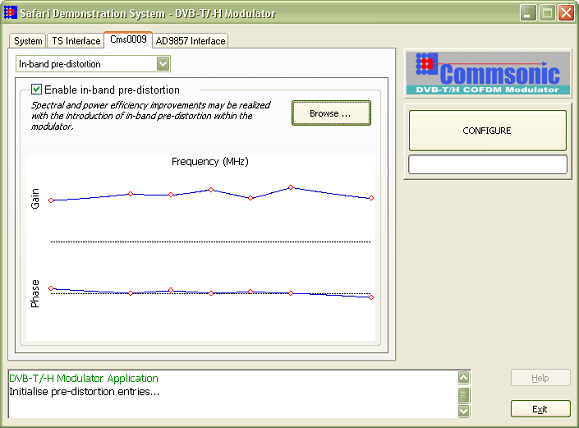

In-band pre-distortion...

DVB-T modulator In-band pre-distortion...

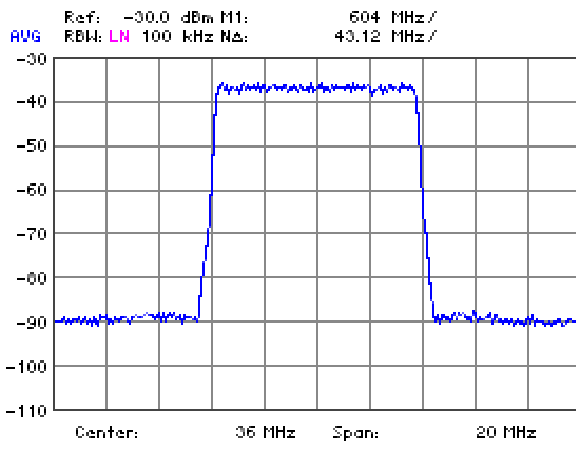

Typical Cyclone-III Starter Kit AD9857 output...

DVB-T modulator Typical Cyclone-III Starter Kit AD9857 output...

Common features

  • Full code-rates support.
  • Full QAM-order support.
  • All guard intervals supported.
  • Hierarchical support.
  • Critical-mask output filtering.
  • FFT output windowing support.
  • In-band predistortion support.
  • Variable 5-8MHz channel bandwidth.

Cyclone-III AD9789 Development Kit.

  • Single RF analog output (Max ~800MHz).
  • Dual ASI Transport stream inputs.

Cyclone-V GX Starter Kit

Cyclone-III Starter Kit

Cyclone-III FPGA Development Kit

Cyclone-III DSP Development Kit

  • DVB-T(H) support.
  • 2k, 4k and 8k-support.
  • Single IF analog output (Max ~40MHz).

Stratix-IV DirectUpRef development kit

  • DVB-T(H) support.
  • 2k, 4k and 8k-support.
  • Single RF output (Max ~1GHz)
  • Dual ASI Transport stream inputs.
